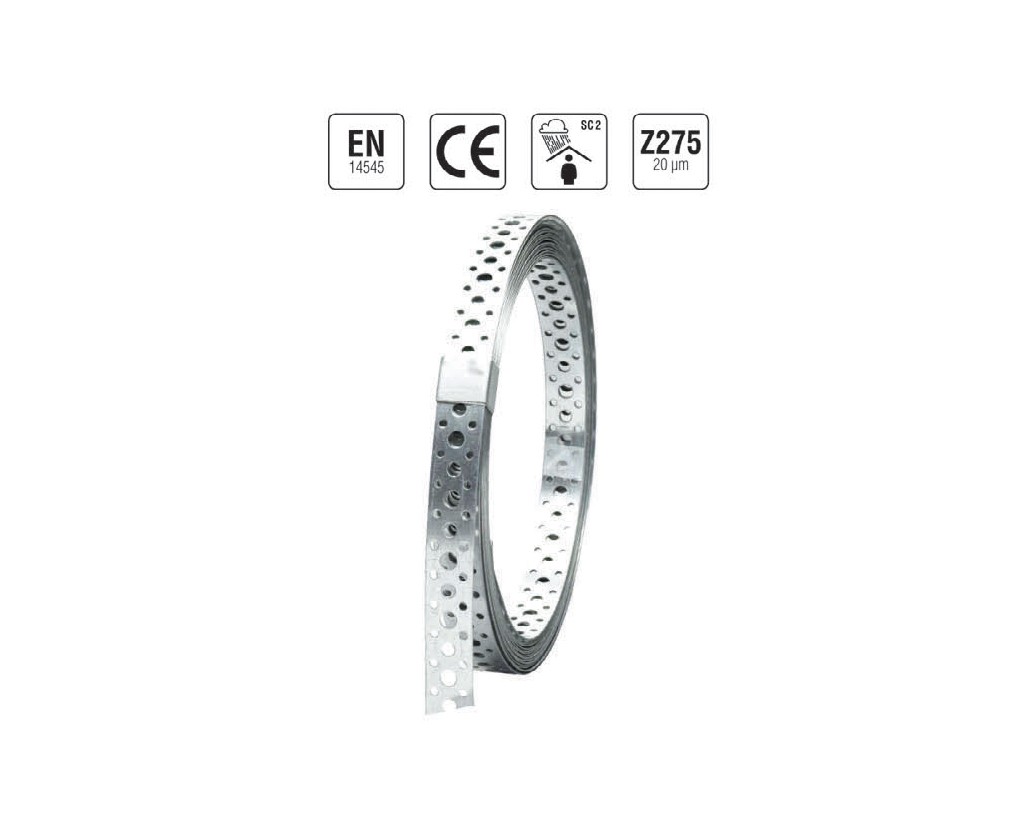

Perforated Strips
PS
Specifications
| Material | S 250GD + Z 275 according to DIN EN 10346 |
| Corrosion Protection | 275 g/m2 on both sides- corresponding to a zinc layer thickness of approx 20 µm |
| Mechanical Properties | YS: Min. 250 Mpa, UTS: Min. 350 Mpa |
| Dimensions | Length | Approval | ETAG | |
|---|---|---|---|---|
| a | b | |||
| 13 | 0.7 | 10m | CE | ETAG 015 |
| 20 | 0.7 | 10m | CE | ETAG 015 |
| 20 | 1.0 | 10m | CE | ETAG 015 |
| 25 | 0.9 | 10m | CE | ETAG 015 |
| 40 | 1.5 | 50m | - | - |
| 40 | 2.0 | 50m | - | - |
| 40 | 3.0 | 50m | - | - |
| 60 | 1.5 | 50m | - | - |
| 60 | 2.0 | 50m | - | - |
| 80 | 1.5 | 25m | - | - |
| 80 | 2.0 | 25m | - | - |
