Joist Hangers and Timber Connectors

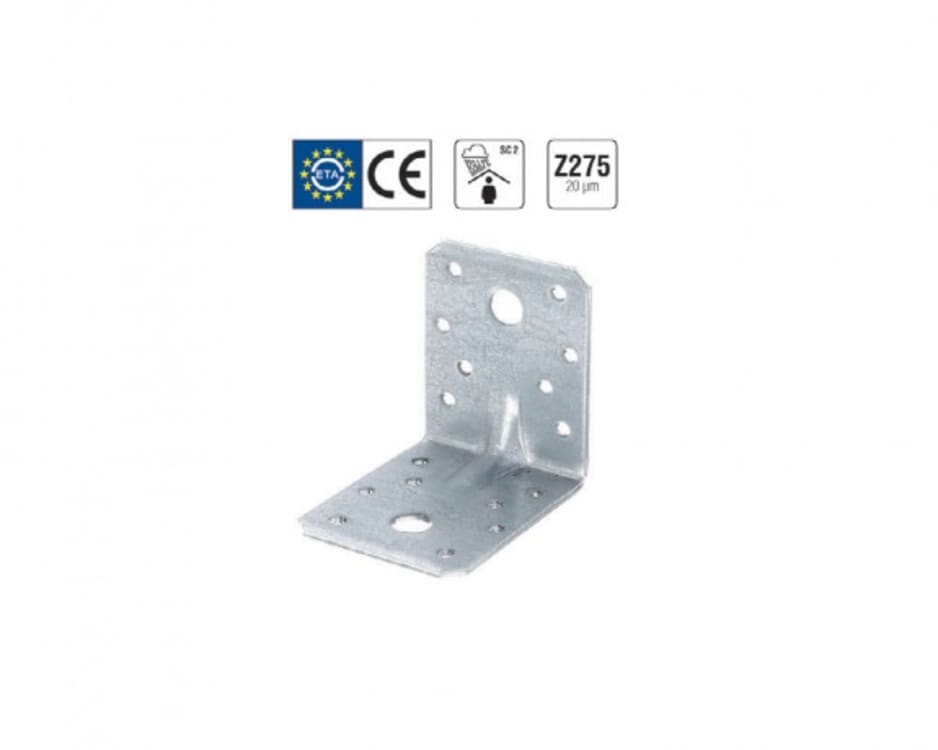

Angle Connectors With Rib
Item code ACWR
Angle Connectors With Rib: Joist Hangers and Timber Connectors component in the Wood Connectors DIY Hardware Products range, supplied by RUNI Industries from Eindhoven.
Supplied by RUNI Industries from stock in Eindhoven or to order, with delivery across Europe. Availability is confirmed on every quotation.
- Material
- S250GD + Z 275 according to DIN EN 10346
- Corrosion Protection
- 275 g/m2 on both sides- corresponding to zinc layer thickness of approx 20 µm
- Mechanical Properties
- YS: Min. 250 Mpa, UTS: Min. 350 Mpa
- Dimensions
- Approval / ETAG
- a
- b / c / d
- 50
- 50 / 35 / 2.5 / CE / ETAG 015
Angle Connectors With Rib: Joist Hangers and Timber Connectors component in the Wood Connectors DIY Hardware Products range, supplied by RUNI Industries from Eindhoven.. Part of the joist hangers and timber connectors range. Ask for the current stock position and a price for your quantity.
