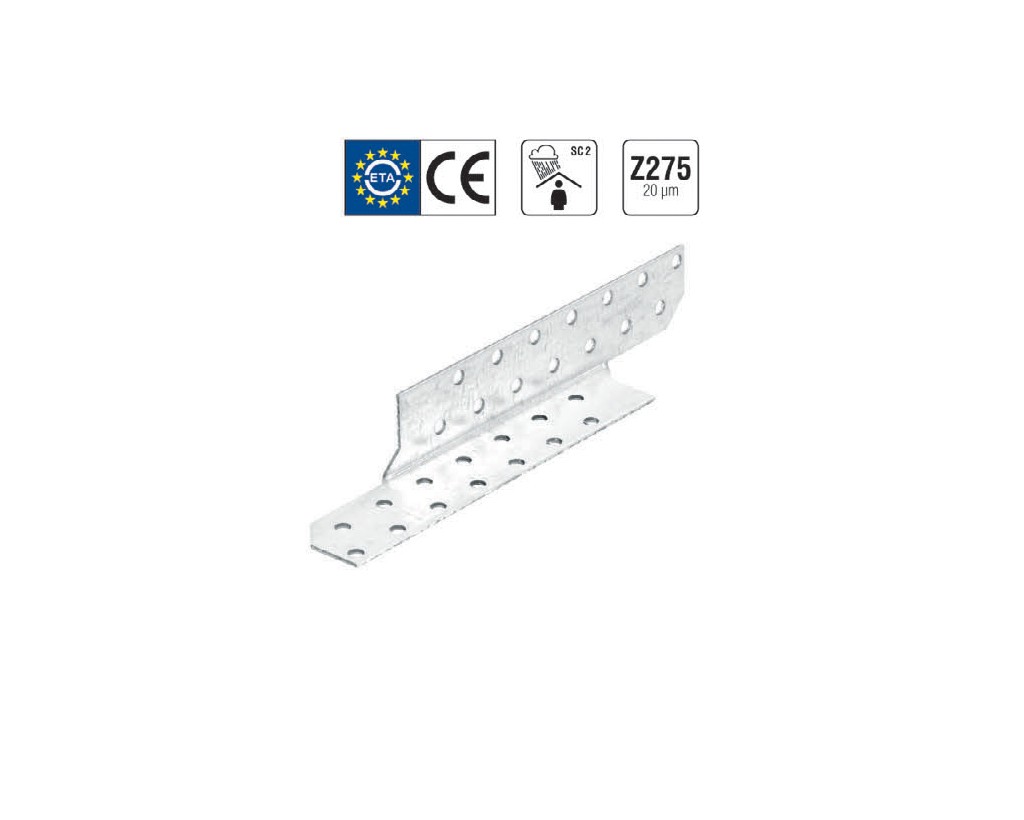

Purlin Anchors
PA
Specifications
| Material | S 250GD + Z 275 according to DIN EN 10346 |
| Corrosion Protection | 275 g/m2 on both sides- corresponding to a zinc layer thickness of approx 20 µm |
| Mechanical Properties | YS: Min. 250 Mpa, UTS: Min. 350 Mpa |

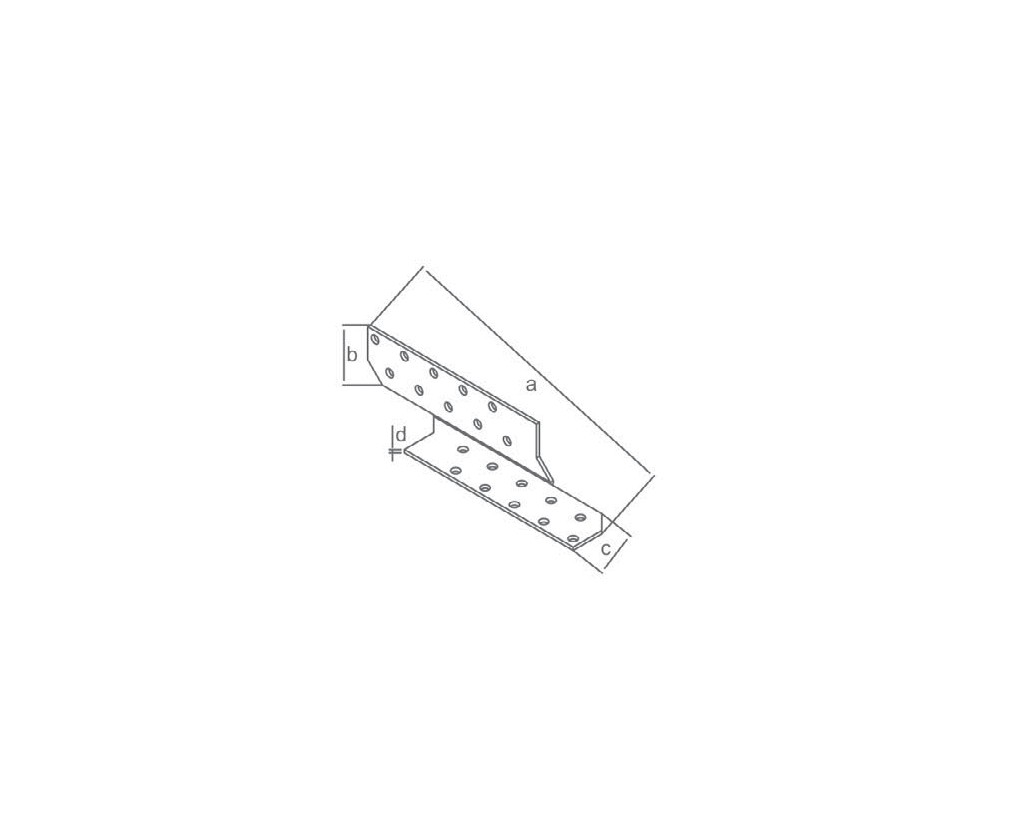

| Dimensions | Type | Approval | ETAG | |||
|---|---|---|---|---|---|---|
| a | b | c | d | |||
| 210 | 30 | 30 | 2.0 | Left | CE | ETAG 015 |
| 210 | 30 | 30 | 2.0 | Right | CE | ETAG 015 |
| 170 | 30 | 30 | 2.0 | Left | CE | ETAG 015 |
| 170 | 30 | 30 | 2.0 | Right | CE | ETAG 015 |
| 250 | 30 | 30 | 2.0 | Left | - | - |
| 250 | 30 | 30 | 2.0 | Right | - | - |
| 290 | 30 | 30 | 2.0 | Left | - | - |
| 290 | 30 | 30 | 2.0 | Right | - | - |
