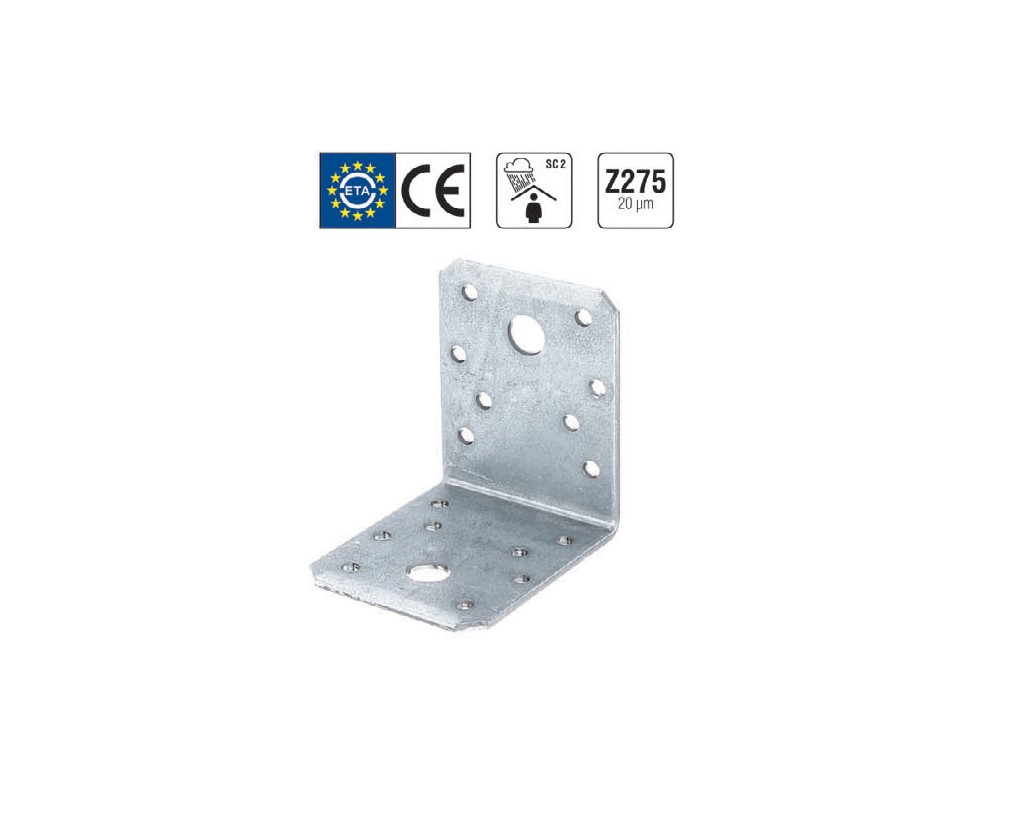

Angle Connectors Without Rib
ACWHR
Specifications
| Material | S250GD + Z 275 according to DIN EN 10346 |
| Corrosion Protection | 275 g/m2 on both sides- corresponding to zinc layer thickness of approx 20 µm |
| Mechanical Properties | YS: Min. 250 Mpa, UTS: Min. 350 Mpa |

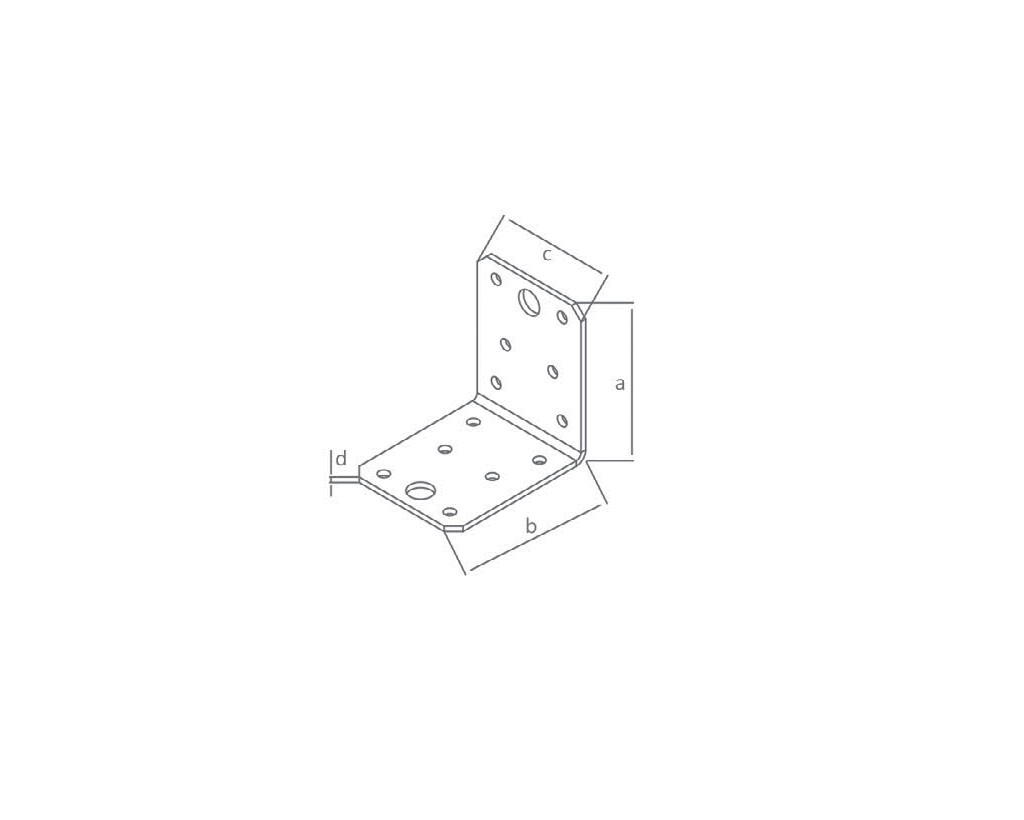

| Dimensions | Approval | ETAG | |||
|---|---|---|---|---|---|
| a | b | c | d | ||
| 50 | 50 | 35 | 2.5 | CE | ETAG 015 |
| 70 | 70 | 55 | 2.5 | CE | ETAG 015 |
| 90 | 90 | 40 | 3.0 | CE | ETAG 015 |
| 90 | 35 | 40 | 3.0 | CE | ETAG 015 |
| 90 | 90 | 65 | 2.5 | CE | ETAG 015 |
| 105 | 105 | 90 | 3.0 | CE | ETAG 015 |
