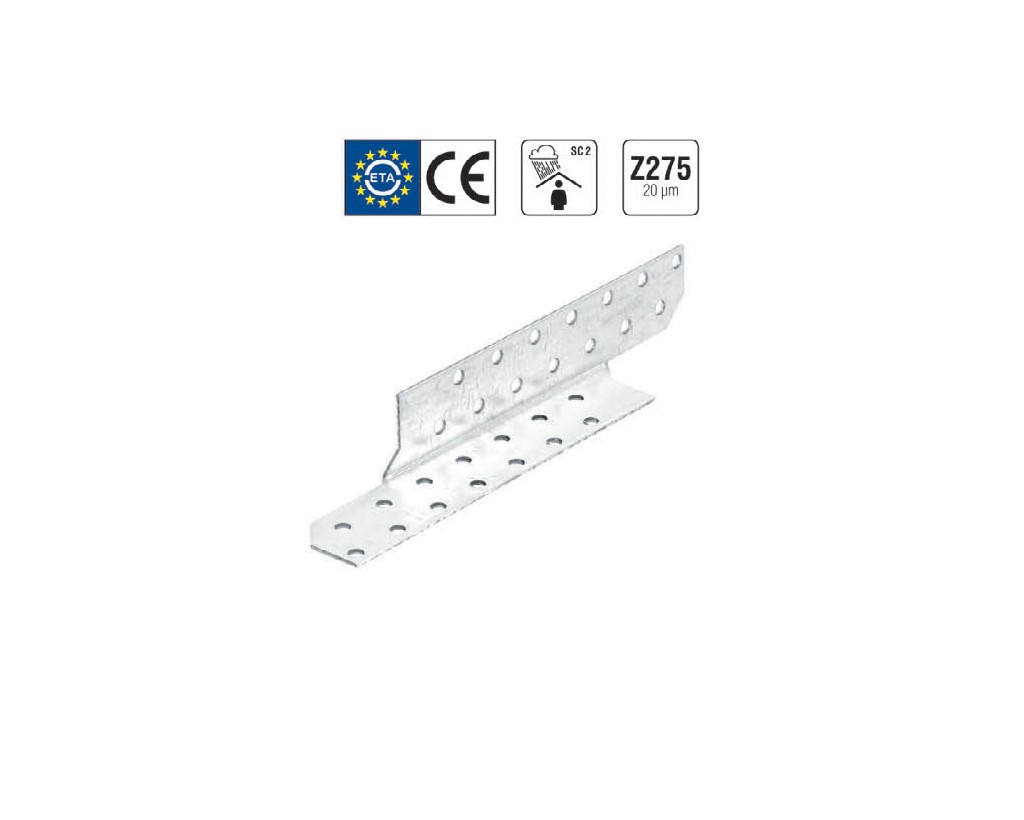

Purlin Anchors

PA

Specifications
Material S 250GD + Z 275 according to DIN EN 10346
Corrosion Protection 275 g/m2 on both sides- corresponding to a zinc layer thickness of approx 20 µm
Mechanical Properties YS: Min. 250 Mpa, UTS: Min. 350 Mpa

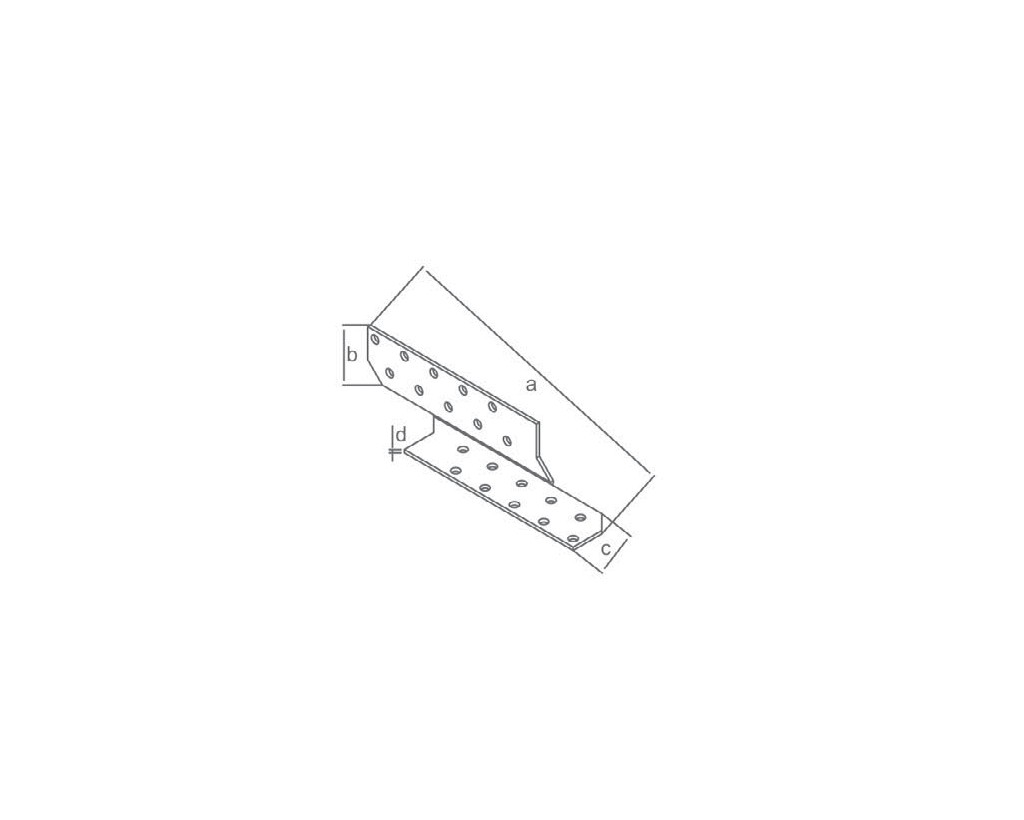

Dimensions Type Approval ETAG
a b c d
210 30 30 2.0 Left CE ETAG 015
210 30 30 2.0 Right CE ETAG 015
170 30 30 2.0 Left CE ETAG 015
170 30 30 2.0 Right CE ETAG 015
250 30 30 2.0 Left - -
250 30 30 2.0 Right - -
290 30 30 2.0 Left - -
290 30 30 2.0 Right - -
