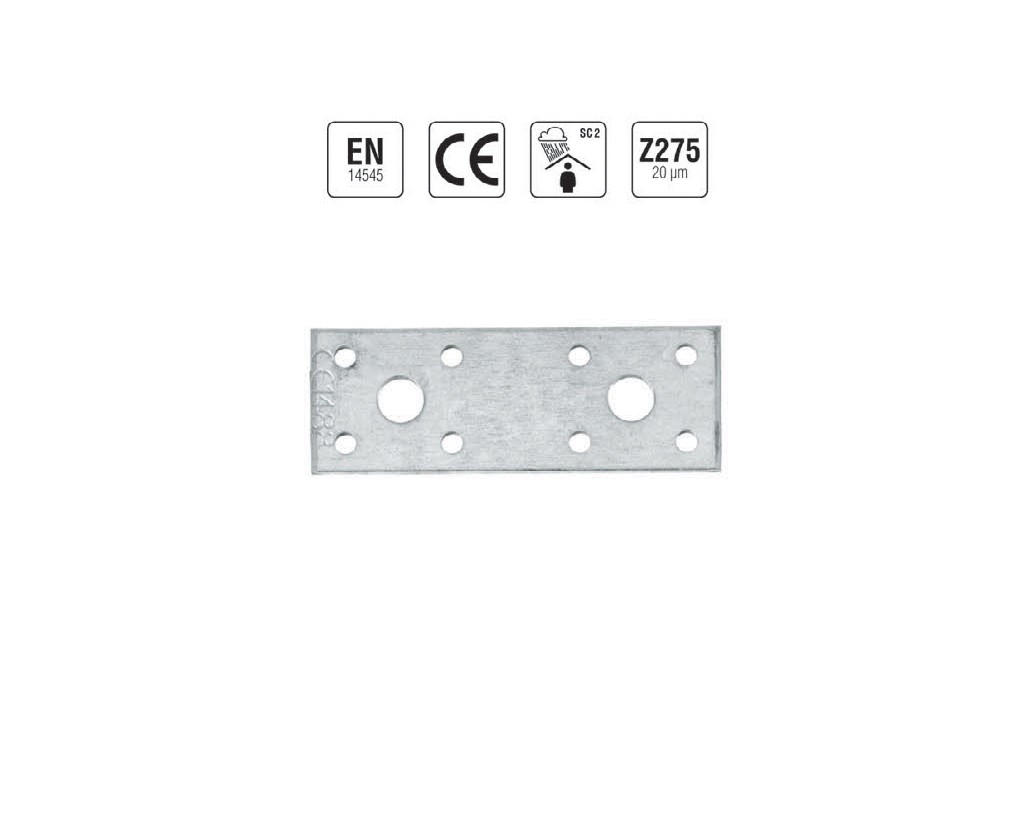

Perforated Plates Type B

PPTB

Specifications
Material S 250GD + Z 275 according to DIN EN 10346
Corrosion Protection 275 g/m2 on both sides- corresponding to a zinc layer thickness of approx 20 µm
Mechanical Properties YS: Min. 250 Mpa, UTS: Min. 350 Mpa

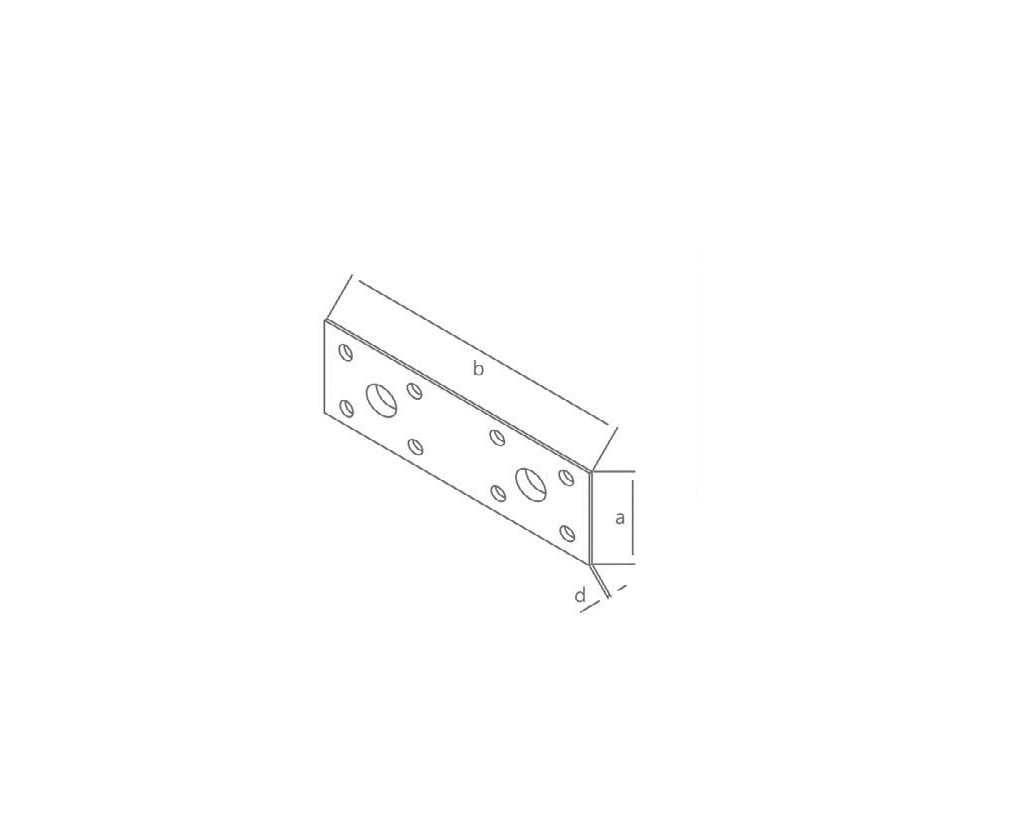

Dimensions Approval ETAG
a b d
35 100 2.5 CE ETAG 015
35 200 2.5 CE ETAG 015
40 175 3.0 CE ETAG 015
35 90 3.0 - -
55 135 3.0 - -
