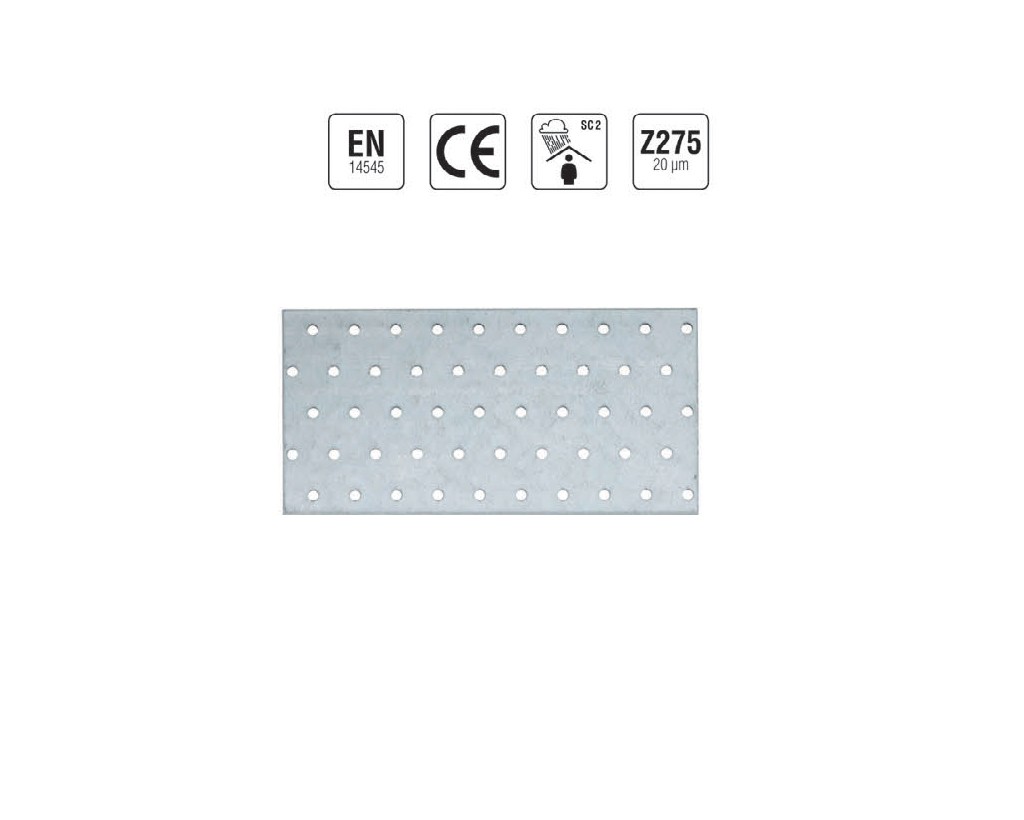

Perforated Plates Type A

PPTA

Specifications
Material S 250GD + Z 275 according to DIN EN 10346
Corrosion Protection 275 g/m2 on both sides- corresponding to a zinc layer thickness of approx 20 µm
Mechanical Properties YS: Min. 250 Mpa, UTS: Min. 350 Mpa
3

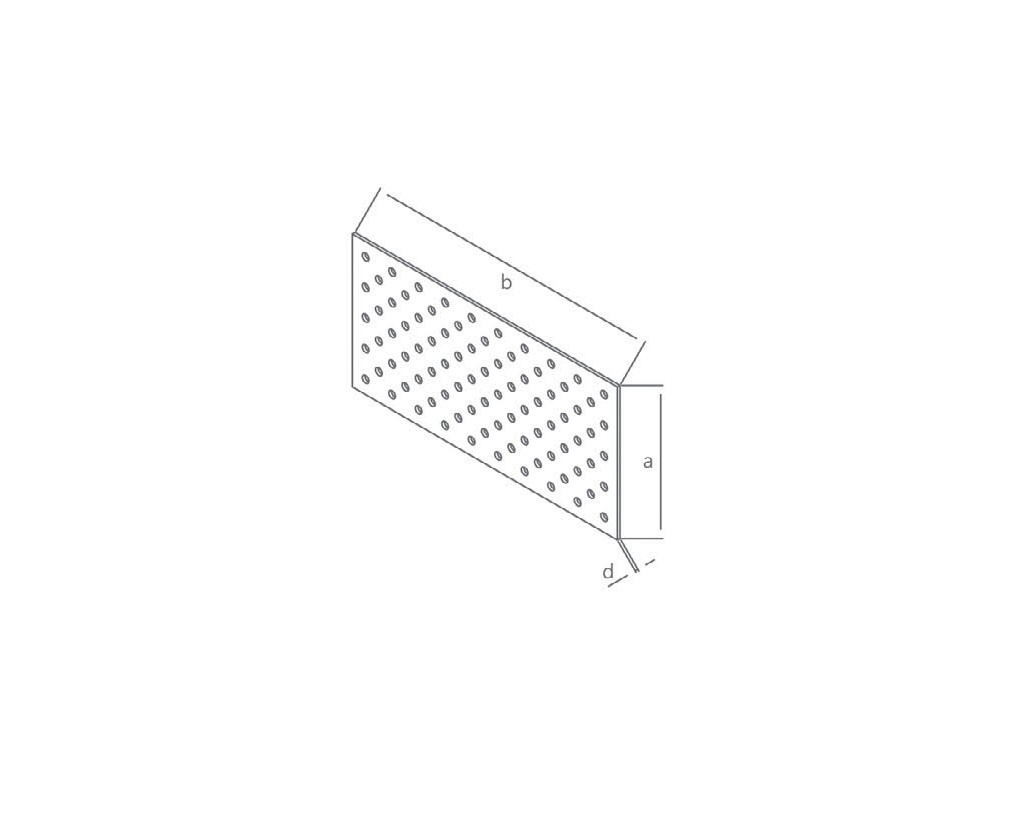

Dimensions Approval ETAG
a b d
40 120 2.0 CE ETAG 015
40 160 2.0 CE ETAG 015
60 140 2.0 - -
60 200 2.0 CE ETAG 015
60 240 2.0 - -
80 200 2.0 - -
80 240 2.0 - -
80 300 2.0 CE ETAG 015
100 200 2.0 CE ETAG 015
100 240 2.0 - -
100 300 2.0 CE ETAG 015
120 300 2.0 CE ETAG 015
