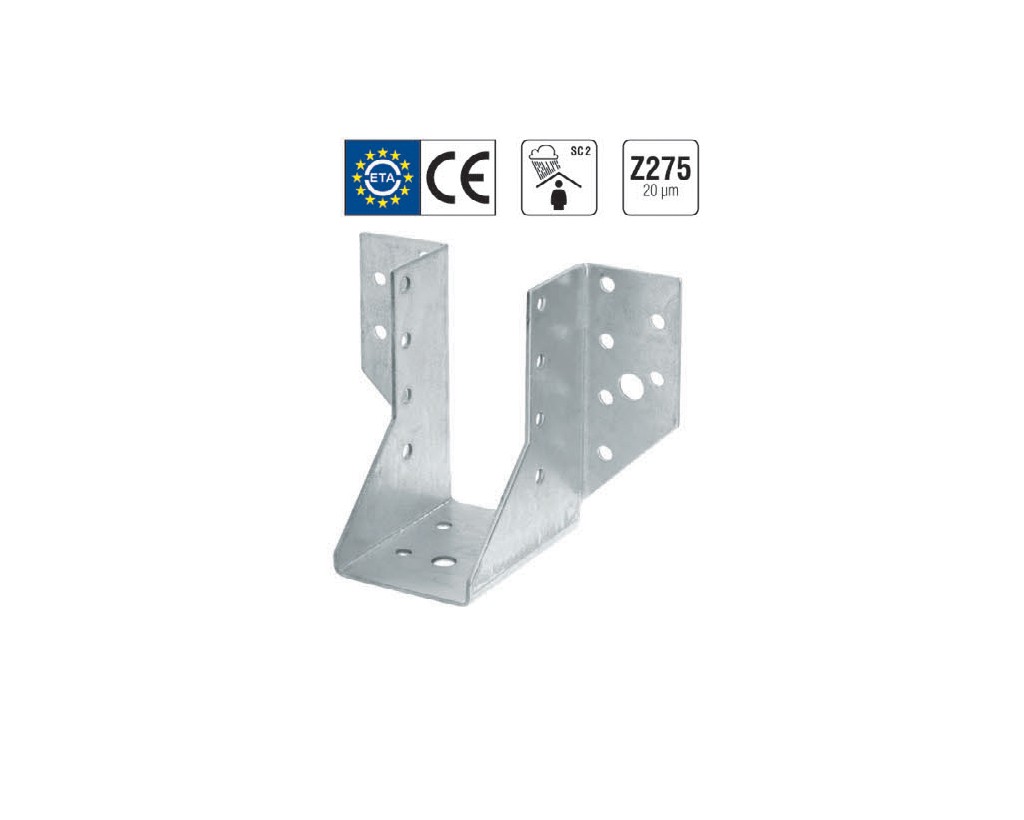

Joist Hangers Type A

JHTA

Specifications
Material S 250GD + Z 275 according to DIN EN 10346
Corrosion Protection 275 g/m2 on both sides- corresponding to a zinc layer thickness of approx 20 µm
Mechanical Properties YS: Min. 250 Mpa, UTS: Min. 350 Mpa

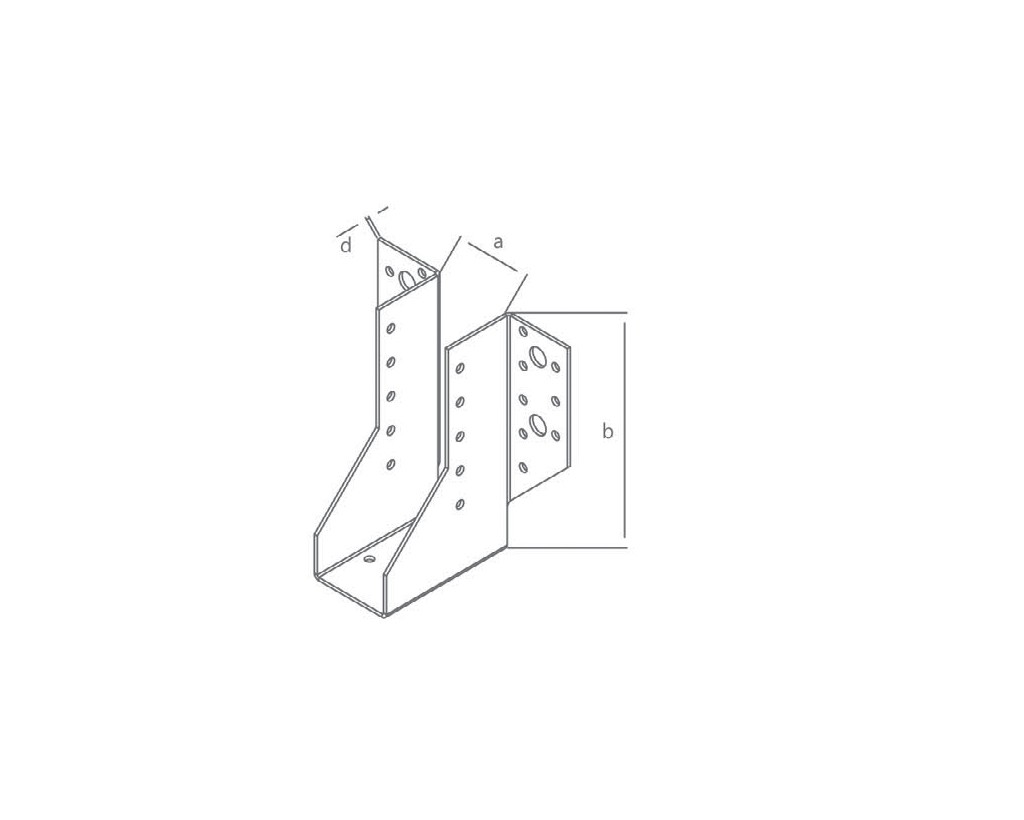

Dimensions Approval ETAG
a b d
45 96 2.0 CE ETAG 015
45 137 2.0 CE ETAG 015
45 168 2.0 CE ETAG 015
48 96 2.0 CE ETAG 015
48 137 2.0 CE ETAG 015
51 93 2.0 CE ETAG 015
51 135 2.0 CE ETAG 015
60 100 2.0 - -
80 120 2.0 - -
100 140 2.0 - -
120 160 2.0 - -
140 180 2.0 - -
