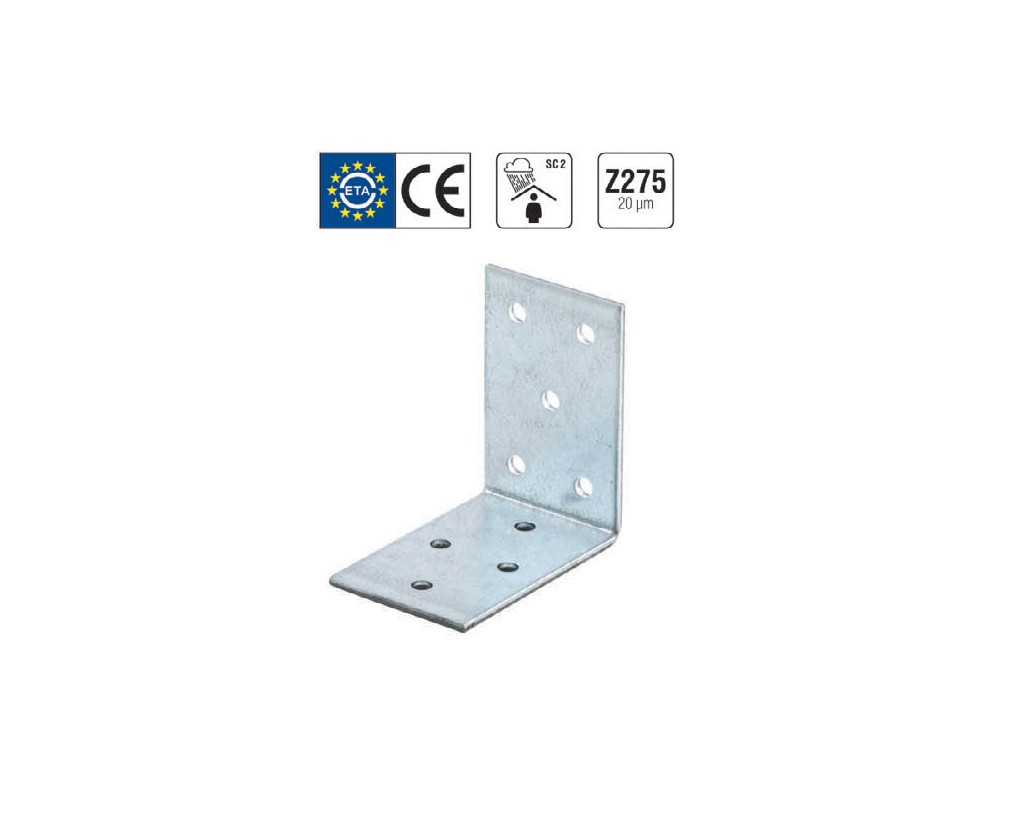

Angle Connectors

AC

Specifications
Material S250GD + Z 275 according to DIN EN 10346
Corrosion Protection 275 g/m2 on both sides- corresponding to zinc layer thickness of approx 20 µm
Mechanical Properties YS: Min. 250 Mpa, UTS: Min. 350 Mpa

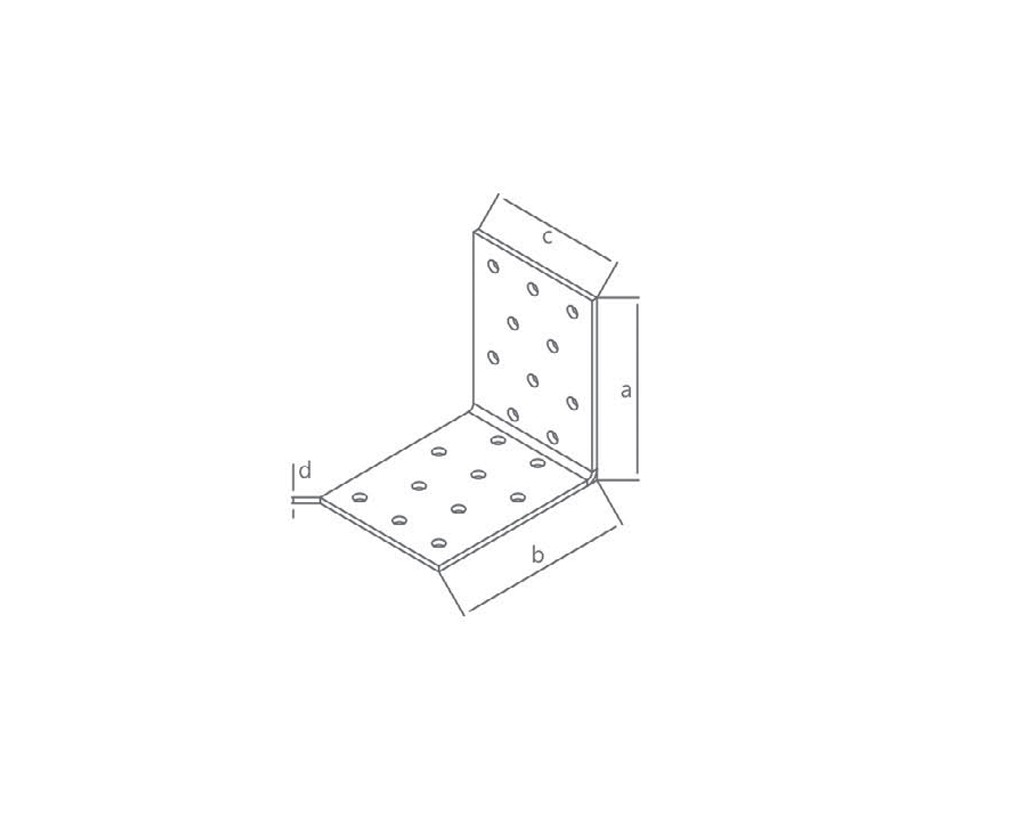

Dimensions Approval ETAG
a b c d
40 40 20 2.0 CE ETAG 015
60 60 40 2.5 CE ETAG 015
60 60 60 2.5 CE ETAG 015
80 80 80 2.5 CE ETAG 015
