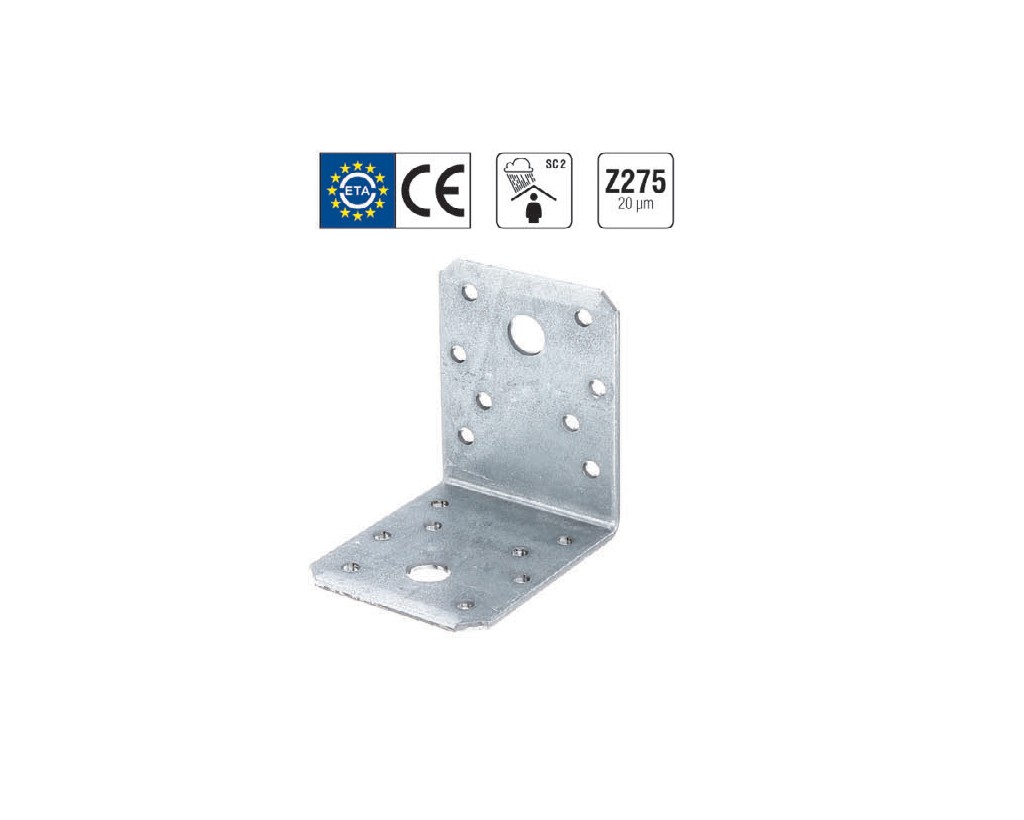

Angle Connectors Without Rib

ACWHR

Specifications
Material S250GD + Z 275 according to DIN EN 10346
Corrosion Protection 275 g/m2 on both sides- corresponding to zinc layer thickness of approx 20 µm
Mechanical Properties YS: Min. 250 Mpa, UTS: Min. 350 Mpa

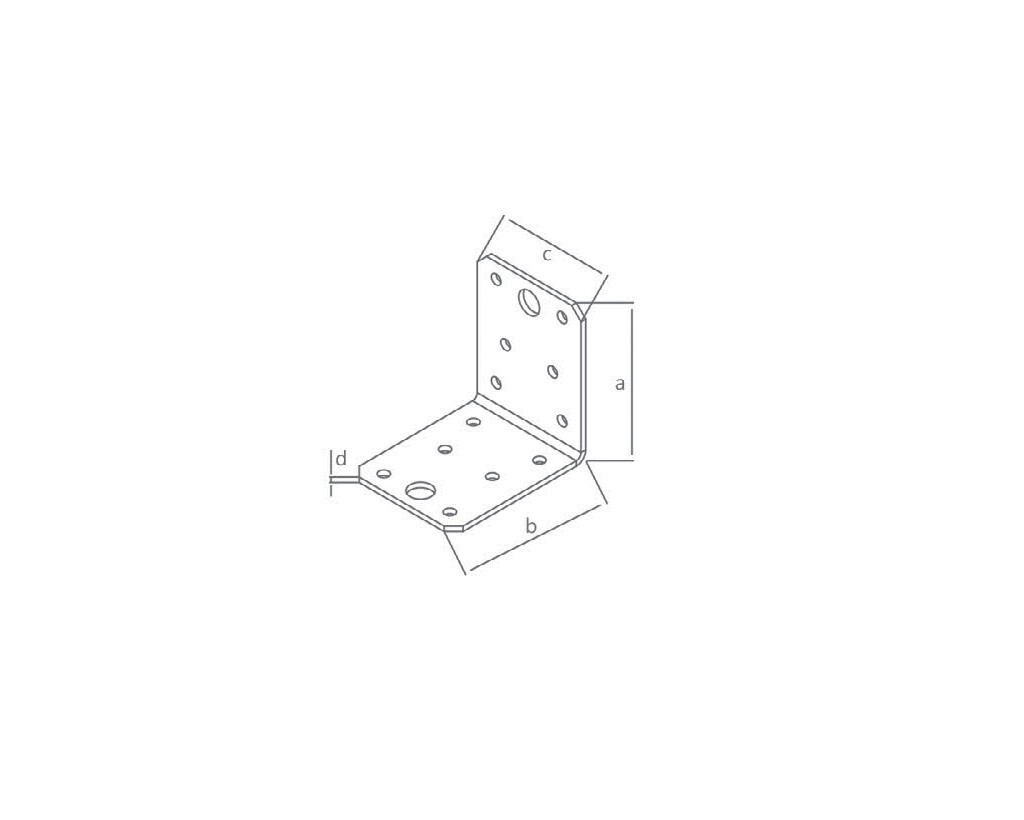

Dimensions Approval ETAG
a b c d
50 50 35 2.5 CE ETAG 015
70 70 55 2.5 CE ETAG 015
90 90 40 3.0 CE ETAG 015
90 35 40 3.0 CE ETAG 015
90 90 65 2.5 CE ETAG 015
105 105 90 3.0 CE ETAG 015
